Description:

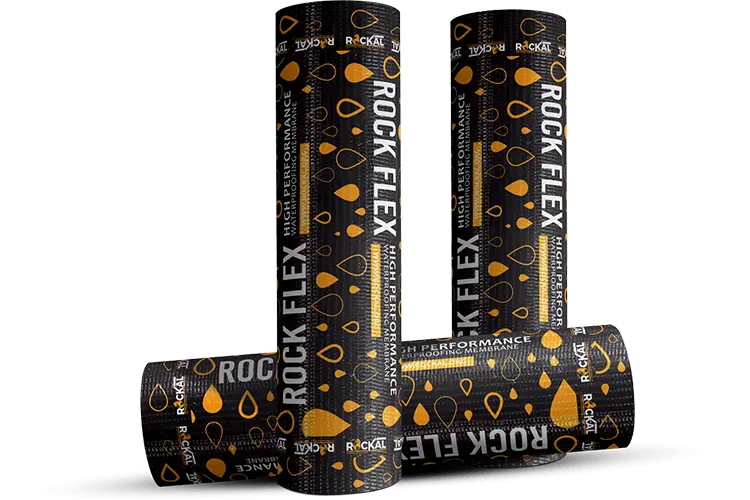

Rock Flex is an Elastomeric high performance, prefabricated, modified bitumen membrane consisting of proprietary waterproofing bitumen compound, reinforced with non-woven polyester Carrier.

Rock Flex proprietary waterproofing com- pound is formulated with high grade bitumen modified with Styrene Butadiene Styrene (SBS) polymer which provides additional elasticity flexibility and dynamic resistance. The membrane withstands temperature fluctuations and high mechanical loads providing a long-term, reliable and effective waterproofing.

To improve the UV resistance and durability for The Product, the membrane is coated with Mineral Stabilizers.

Application:

Rock Flex waterproofing membrane are used for a wide variety of application:

• Roofing or Re-roofing for covered single layer  system or as a base layer for multi-layer systems.
• Wet area, Swimming Pool and Toilets.
•  Underground waterproofing
•  Flat and Sloped roofing

 The Product could be applied for waterproofing of foundations and engineering structures by torching hot air generator or by using special adhesives in both cold and hot applications

• Based on surface conditions, a coat of ROCKAL primer product will be required prior to the application of the membrane.
•  According to the waterproofing system design and adhesion instruction, SBS-Product can be applied to the substrate fully bonded, semi bonded or loose laid.
• Please refer to the ROCKAL application guide for complete instruction on the application of the product

Key Features:

• High U.V. resistance (Mineral Finish).
• Excellent thermal resistance
• Strong adhesion to substrate
• Proven water impermeability

Chemical resistance to wide range of light acidic, alkaline solutions and bacteria.

Reinforcement:

There are several types of reinforcement materials used in bituminous membranes, including:

• Non- woven Glass fiber Reinforcement: provides tensile strength and dimensional stability

• Non-woven polyester fabric: provides tensile strength and stability

• Non-woven Polyester reinforcement reinforced with fiberglass filaments composite : Very high tensile strength, excellent elongation properties and good dimensional stability.
• Compound Base: High tensile strength and good dimensional stability

The choice of reinforcement material depends on the specific requirements of the roofing system and the desired properties such as reflectivity, dimensional stability, and resistance to environmental factors.

Surface Finish

The surface finish of a bituminous membrane refers to the final appearance of the membrane once it has been installed on the roof. The surface finish can have an impact on the overall aesthetic of the roof, as well as its performance. Some common types of surface finishes for bituminous membranes include:

• Sand finish: a rough, textured surface that helps to increase the coefficient of friction and improve slip resistance, Specially (White/Yellow)

• Granulated finish: a surface that is covered with small, granulated particles, typically made of a durable material such as aluminum oxide. This finish provides a high level of slip resistance and UV stability. Available in colors (Red, Grey, Green)

• Smooth finish: a smooth surface that provides a sleek, modern appearance, but may have lower slip resistance compared to other finishes.

The choice of surface finish depends on the specific requirements of the roofing system, such as the desired level of slip resistance and the type of roof deck.

Methods of Installation

SBS (Styrene Butadiene Styrene) bituminous membranes are installed using a variety of methods, including:

• Heat welded seam method: involves heating the overlapped edges of the membrane with a propane torch to create a seamless, watertight bond between the two pieces of membrane.

• Cold adhesive method: involves using a cold-applied adhesive to bond the membrane to the roof deck.

• Mechanically fastened method: involves using special mechanical fasteners to attach the membrane to the roof deck.

• Ballasted method: involves placing heavy stones or pavers on top of the membrane to keep it in place, without the need for fasteners or adhesives.

The choice of installation method will depend on factors such as the type of roof deck, the local building codes and regulations, and the desired level of seam strength and durability. It is recommended to seek the guidance of a professional roofing contractor for the installation of an SBS bituminous membrane.

Rock Flex Membrane Characteristics

Note

•  Products could vary in: Thickness - 3:4mm

•  ± All Tolerances according to UEAtc Directives

•  PES: Non-Woven Polyester Reinforcement Carrier
